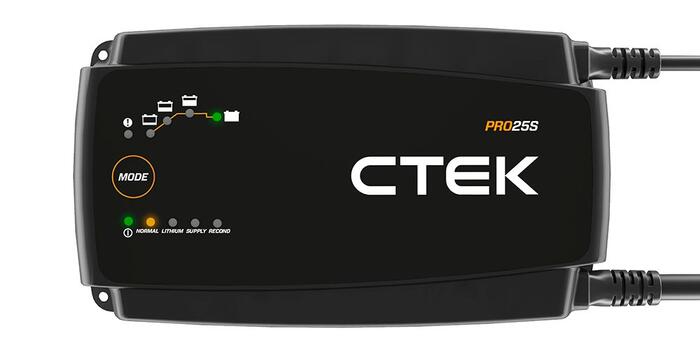

CTEK Auto akumulatora lādētājs 25A 12V PRO25S UK (1703-40-194)

Description

25A charger and power supply for workshops and showrooms

Advanced technology will ensure that a safe, fast charge is delivered to exactly meet the needs of the individual battery. The PRO25S has a dedicated lead-acid battery reconditioning programme to restore battery life & recondition flat batteries. SUPPLY mode will support the battery during diagnostic or fault finding work. It has low voltage & current ripple, so it’s safe for the battery & the vehicle’s delicate electronic systems. Fully automatic & easy to use, it’s also very simple to connect, spark proof and reverse-polarity protected to protect the user & also the battery. The PRO25S is designed to ensure easy handling in both the workshop & the showroom. Whilst it’s lightweight & portable, the rugged, impact-resistant casing means it can also handle the toughest workshop environment.

Features

• Integrated safety features, so it’s safe for the battery & the vehicle.
• Built-in temperature sensor to achieve maximum charge levels
• Dedicated lead-acid reconditioning programme to restore battery life and recondition flat batteries.
• IP44 classified for outdoor use
• Lightweight & highly portable
• Tough & robust
• 2 year warranty

Technical data

Battery capacity: 40–500 Ah, lead-acid battery types. 30–450 Ah, LiFePO₄.

Charging category: AC charging

Back current drain*: Corresponding to less than 1 Ah/month

Back Current Drain, details: *) Back current drain is the current that drains the battery if the charger is not connected to the mains. CTEK chargers have a very low back current.

Battery voltage: 12 V

Battery chemistry: Lead acid; Lithium-ion

Ambient operating temperature: -20 ˚C to +50 ˚C

Cooling: Fan

Input: 220–240 VAC, 50–60 Hz, 2.9 A

Output: 14.4/15.8/13.6 V, 25 A, lead-acid battery types. 13.8 V/14.4 V/13.3 V, 25 A, LiFePO₄.

Start voltage: 2.0 V

Ripple**: Less than 4 %

Ripple, details: **) The quality of the charging voltage and charging current is very important. A high current ripple heats up the battery which has an aging effect on the positive electrode. High voltage ripple could harm other equipment that is connected to the battery. CTEK battery chargers produce very clean voltage and current with low ripple.

Battery types: 12 V:; WET; MF; Ca/Ca; AGM; EFB; GEL; LiFePO₄

Degree of protection: IP44

Gross weight (unit in box): 2.2 kg

Dimensions (L x W x H): 235 x 130 x 65 mm

Charging cable length (output): 2 m

Net weight (unit with cables): 1.8 kg

Warranty: 2 years
