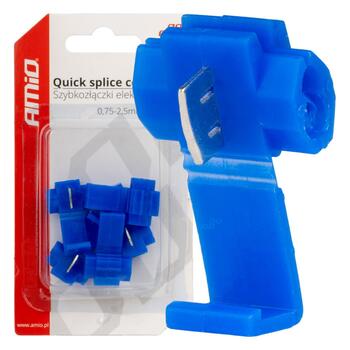

Ātrā savienojuma savienotājs 0,75-2,5mm2 15A 5gab blisteris (02341)

A quick-connect terminal is an electrical connector designed for the quick and safe connection of insulated wires;

Simply push the insulated wires into the metal insert, snap the cover shut and squeeze with standard pliers; then attach the connector to the terminal block to create a ‘branch’ from the connection.

Once the connection has been made correctly, the wires are pressed into the metal connector to form a permanent connection, and an additional load can be connected to the connector.

Quick-connect terminals are products designed for low-voltage installations (12–24 V) and are most commonly used in the automotive industry.

Quick-connect terminals designed for rapid cable connection.

Specification:

• max 15A
• wire cross-section: 0.75 ÷ 2.5 mm²
• -50°C to +105°C
• PVC insulation

Installation:

• Insert both wires into the connector.
• Press the metal insert into place using pliers.
• Snap the cover into place.

Note: Installation does not require the insulation to be stripped from the wires
