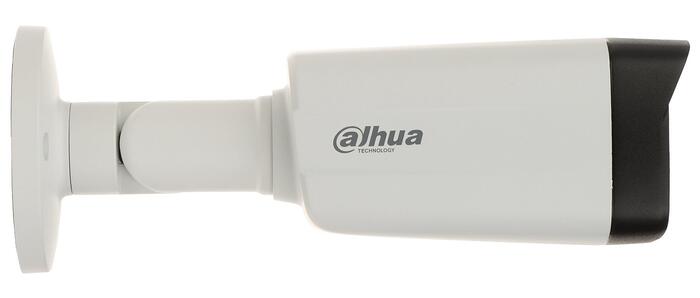

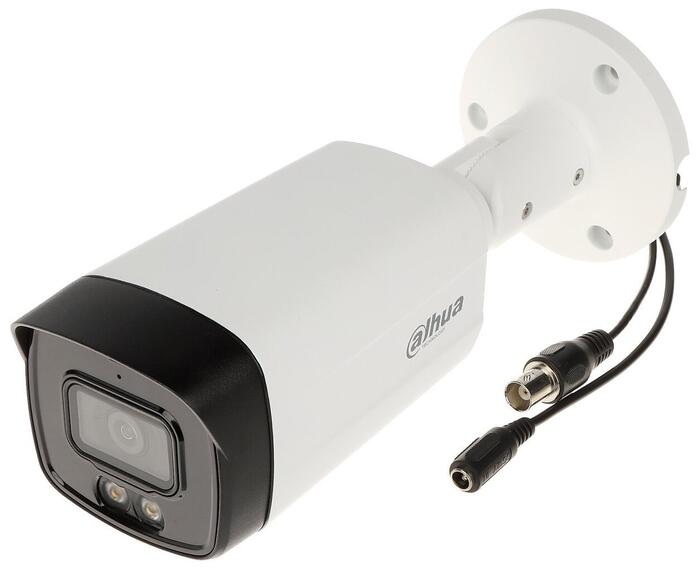

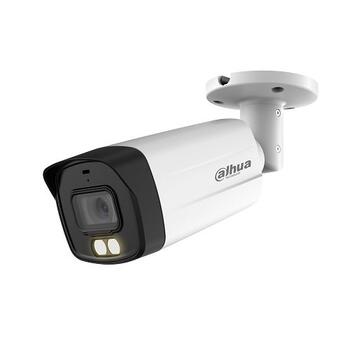

DAHUA CVI2 Kamera HAC-HFW1239TM-IL-A 3.6mm / CVI/TVI/AHD/CVBS (HFW1239TIL36)

Specification:

• Pixel: 2 MP

• Image Sensor: 2 MP CMOS

• Max. Resolution: 1920 (H) × 1080 (V)

• Scanning System: Progressive

• Electronic Shutter Speed:

  • PAL: 1/25 s – 1/100,000 s

  • NTSC: 1/30 s – 1/100,000 s

• Min. Illumination:

  • 0.001 lux @F1.6 (Color, 30 IRE)

  • 0.0001 lux @F1.6 (B/W, 30 IRE)

  • 0 lux (IR on)

• S/N Ratio: >65 dB

• Illumination Distance:

  • IR: 40 m (131 ft)

  • Warm light: 40 m (131 ft)

• Illuminator Control: Auto/Manual

• Illuminator Number: 2 × IR, 2 × Warm light

• Pan/Tilt/Rotation Range:

  • Pan: 0°–360°

  • Tilt: 0°–90°

  • Rotation: 0°–360°

Lens:

• Lens Type: Fixed-focal

• Lens Mount: M12

• Focal Length: 3.6 mm

• Max. Aperture: F1.6

• Field of View (3.6 mm): H: 86°, V: 46°, D: 101°

• Iris Control: Fixed

• Close Focus Distance: 1.1 m (3.6 ft)

DORI Distance (3.6 mm):

• Detect: 53.7 m (176 ft)

• Observe: 21.5 m (71 ft)

• Recognize: 10.7 m (35 ft)

• Identify: 5.4 m (18 ft)

Video:

• Frame Rate:

  • CVI: PAL 1080p@25 fps / NTSC 1080p@30 fps

  • AHD: PAL 1080p@25 fps / NTSC 1080p@30 fps

  • TVI: PAL 1080p@25 fps / NTSC 1080p@30 fps

  • CVBS: PAL 960×576H / NTSC 960×480H

• Resolution: 1080p (1920×1080), 960H (960×576 / 960×480)

• Day/Night: Auto (ICR) / Color / B/W

• BLC: BLC, HLC, WDR

• WDR: 130 dB

• White Balance: Auto / Area

• Gain Control: Auto/Manual

• Noise Reduction: 3D NR

• Smart Illumination: Yes

• Mirror: On/Off

• Privacy Masking: On/Off (8 areas, rectangle)

• Illuminator Modes: Smart IR & WL, WL Mode, IR Mode

Certification:

• CE: EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017

• FCC: CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014

• UL: UL62368-1 + CAN/CSA C22.2 No.62368-1-14

Ports:

• Video Output: CVI/TVI/AHD/CVBS (1 × BNC port)

• Audio Input: 1 channel, built-in MIC (-A)

Power

• Power Supply: 12 VDC ±30%

• Consumption: Max 4.0 W (LED on)

Environment:

• Operating Temp.: –40 °C to +60 °C (–40 °F to +140 °F)

• Humidity: <95% RH (non-condensing)

• Storage Temp.: –40 °C to +60 °C (–40 °F to +140 °F)

• Protection: IP67

Structure:

• Casing Material: Metal

• Product Dimensions: 240.7 × 90.7 × 90.4 mm (9.48" × 3.57" × 3.56")

• Packaging Dimensions: 299 × 119 × 111 mm (11.77" × 4.69" × 4.37")

• Net Weight: 0.65 kg (1.43 lb)

• Gross Weight: 0.89 kg (1.96 lb)

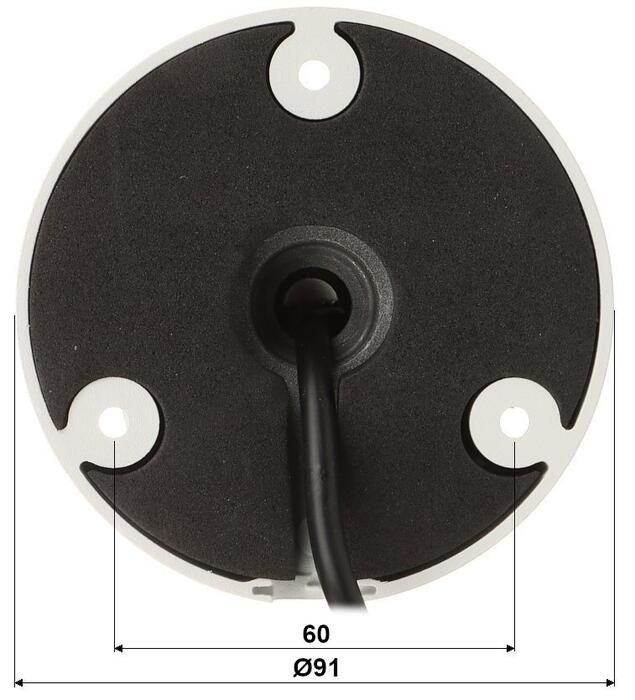

• Installation: Wall mount / Ceiling mount / Pole mount
