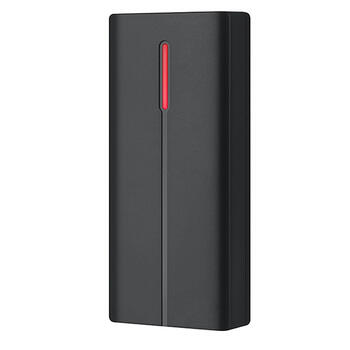

L-110 ~ Автономный контроллер с EM 125кГц считывателем 2000 пользователей 12в IP68 (011490)

1. Features

• Operate by infrared remote
• Support multi access ways: Card, multi cards
• Support admin card
• 2,000 card users
• Can set standalone access control mode, toggle relay mode, reader mode
• Reader format can be set for wg26/34/37/58
• With data transconductance

2. Technical Specifications

• Operating Voltage: DC 12V
• Standby Current: ≤ 35mA
• Operating Current: ≤100mA
• Operating Temperature: -35℃~60℃
• Operating Humidity: 0%~95%
• Electric lock signal relay contact current：≤1A
• Alarm signal MOS tube output current: ≤1A
• Unlocking time: 0~300s adjustable

3. Installation

Remove the back cover from the keypad using the supplied special screw driver

Drill 2 holes on the wall for the self-tapping screws and hole for the cable

Put the supplied rubber bungs to into the two holesFix the back cover firmly on the wall with 2self-tapping screws

Thread the cable through the cable hole

Attach the keypad to the back cover. (as following illustration)

4. Wiring
