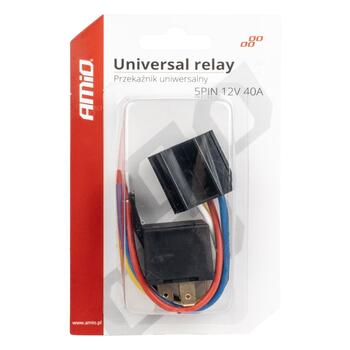

Relejs 5pin AMIO-03510 (03510)

A 12V / 40A car relay kit with a dedicated socket, designed, amongst other things, for switching on lights, the ignition lock or a car alarm. The relay features a mounting hole to facilitate installation. The kit has been manufactured using high-quality materials, guaranteeing long-lasting and safe operation.

Relay specifications:

• Supply voltage: 12V
• Maximum current: 40A
• Coil resistance: 82Ω
• Number of connectors: 5
• Connector width: 6.3mm
• Dimensions: 28.5 x 28.5 x 25 mm
• Mounting bracket: built-in

Socket specifications:

• Number of wires: 5
• Cable specifications: 3–16 AWG, 2–18 AWG
• Cable colours: red, black, yellow, white, blue
• Cable length: 14.5 cm
• Contents of the set:
• Relay: 1 pc
• Socket with wiring: 1 pc
