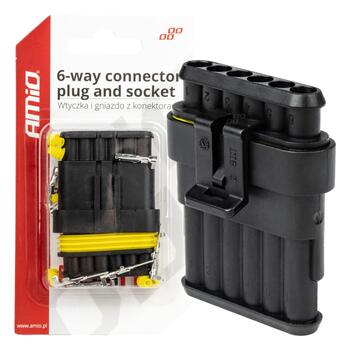

Savienotājs konektors 6vietas AMIO-03522 (03522)

Superseal 6-pin hermetic connector

Superseal 6-pin hermetic connector – designed for electrical connections. Used in the automotive and engineering industries. Silicone seals ensure high resistance to external factors. The high quality of the contact elements guarantees excellent electrical performance of the connector.

Contents of the set:

• Male connectors – 6 pcs.
• Female connectors – 6 pcs.
• Seals – 12 pcs.
• Two-piece lockable plug

Specifications:

• Number of pins/contacts: 6
• Operating voltage: 12–24 V
• Maximum current: 15 A continuous / 18 A (5 sec.)
• Working contacts: SS1.5 connector for 0.75–1.5 mm² cable
• Contact and connector material: Tin-plated bronze (CuZn/Sn)
• Operating temperature range: -40°C to +125°C
• Ingress protection rating: IP67
• Housing material: polyamide 6.6
• Compliance with directives: RoHS, EC
