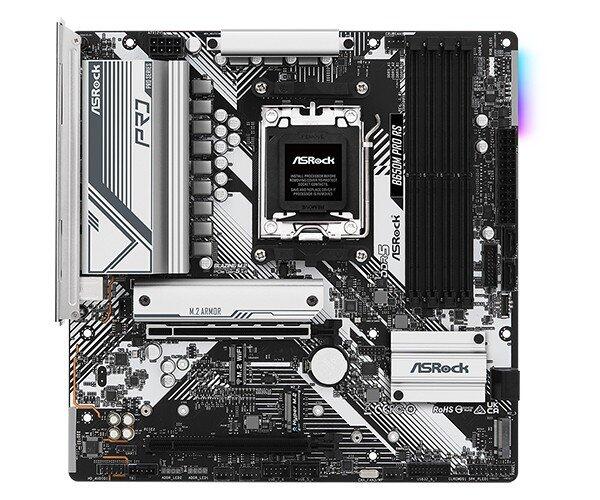

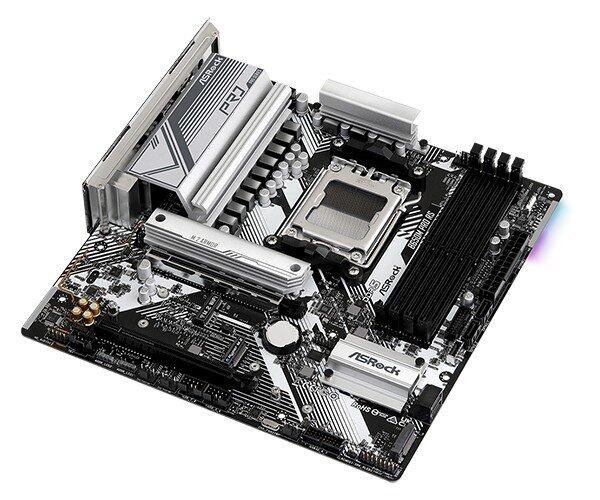

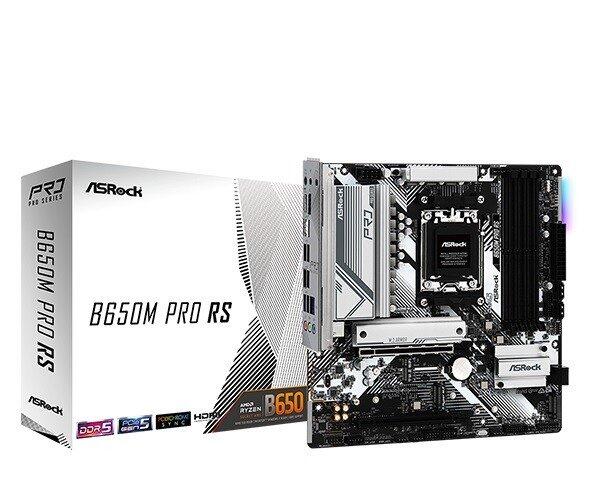

ASRock B650M PRO RS Pamatplate mATX / AMD AM5 (B650MPRORS)

ASRock B650M PRO RS Motherboard – Specifications

General Information:

• Model: B650M PRO RS
• Form Factor: Micro ATX
• Dimensions: 24.4 x 24.4 cm
• Socket: AM5
• Chipset: AMD B650
• Processor Compatibility: AMD Ryzen (No integrated CPU)

Memory:

• Type: DDR5
• Slots: 4
• Max Frequency: 7200 MHz
• Max Capacity: 192 GB

Expansion & Storage:

• PCIe Slots:
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 4.0 x16
• M.2 Slots: 4
• SATA Devices Support: Up to 4
• RAID Support: Yes

Connectivity & Networking:

• LAN: 1 x 10/100/1000/2500 Mbps
• Rear I/O USB Ports: 8
• Onboard USB Ports: 9
• USB Breakdown:
  • USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0: 7
  • USB 3.2 Gen 2 / USB 3.1 Gen 2: 2
  • USB Type-C: 1

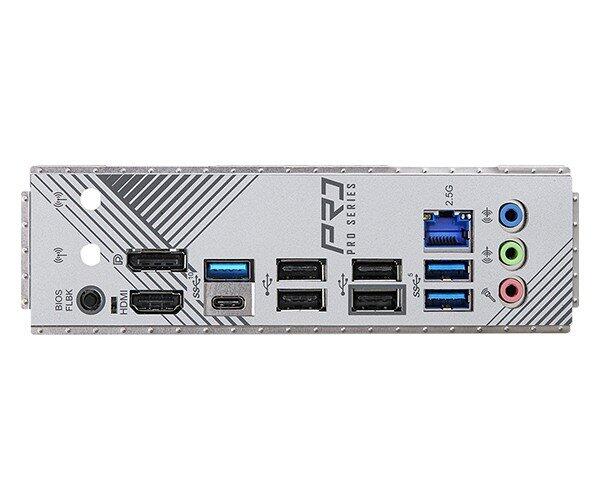

External Connectors:

• 1 x DisplayPort
• 1 x HDMI
• 1 x RJ-45 (LAN)
• 1 x Line In, Line Out, MIC
• 4 x USB 2.0
• 2 x USB 3.0
• 1 x USB 3.1
• 1 x USB 3.1 Type-C
• 2 x SMA (Antenna Connectors)
• 1 x Flash BIOS Button

Internal Connectors:

• Cooling & Power:
  • 1 x 4-pin CPU Fan
  • 1 x 4-pin CPU/Water Pump Fan
  • 3 x 4-pin Chassis Fans
  • 1 x 8-pin 12V Power
  • 1 x 24-pin ATX Power
• Storage & USB:
  • 4 x M.2 Slots
  • 4 x SATA III (6Gb/s)
  • 4 x USB 2.0 / 1.1 Headers
  • 4 x USB 3.0 Headers
  • 1 x USB-C Header
  • 1 x Thunderbolt Header
• Miscellaneous:
  • 1 x TPM Header
  • 1 x Front Panel Audio Header
  • 1 x Power LED Header
  • 1 x RGB LED Strip Header
  • 3 x Addressable LED Headers
