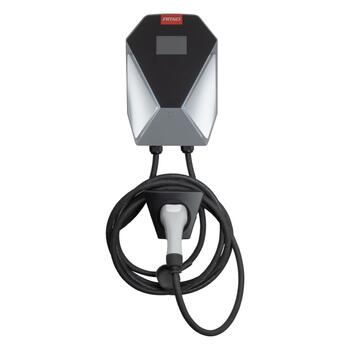

Sienas Elektro auto lādētājs trīsfāzu 22kW 32A 400V AMIO-04843 (04843)

This 22 kW wall-mounted electric vehicle charger is a three-phase AC device designed for professional and commercial applications, as well as intensive use in residential and fleet installations. Its higher charging power makes it a solution for users who demand maximum efficiency and reduced charging times.

nbsp;

The device operates on a three-phase 400V system at 32A (50/60 Hz), ensuring high energy efficiency and stable operation in demanding conditions. A built-in LCD display allows for real-time monitoring of operating parameters.

nbsp;

The charger is equipped with a comprehensive protection system, including:

bull; differential protection (AC/DC, 0.2 mA sensitivity),

bull; overload protection,

bull; overvoltage and undervoltage protection,

bull; short circuit protection,

bull; earth leakage protection,

bull; ground monitoring.

nbsp;

The device complies with the IEC62752 and IEC62955 standards. The RN8302B measurement module ensures very high energy measurement accuracy (error lt;0.1%, class 0.5S and 0.2S), enabling precise energy billing in commercial applications.

nbsp;

The built-in RCPD-14AS75 differential circuit provides advanced AC/DC detection that meets the safety requirements of modern EV installations.

nbsp;

The IP66-rated housing and IP55 plug guarantee high resistance to weather and environmental conditions. The operating range includes temperatures from -30deg;C to +50deg;C, humidity 5ndash;95%, and altitudes up to 2000 m above sea level.

nbsp;

Technical parameters:

bull; Power: 22 kW

bull; Voltage: 400V

bull; Current: 32A

bull; Type: AC, three-phase

bull; Charging cable length: 5 m (5000 mm)

bull; Power cable cross-section: 5 times; 6 mmsup2;

bull; Short circuit current: 1500 A (IEC 62752:2016 + AMD1:2018)

nbsp;

The device is designed for continuous operation, offering high reliability, safety, and compliance with current electric vehicle charging infrastructure standards.
